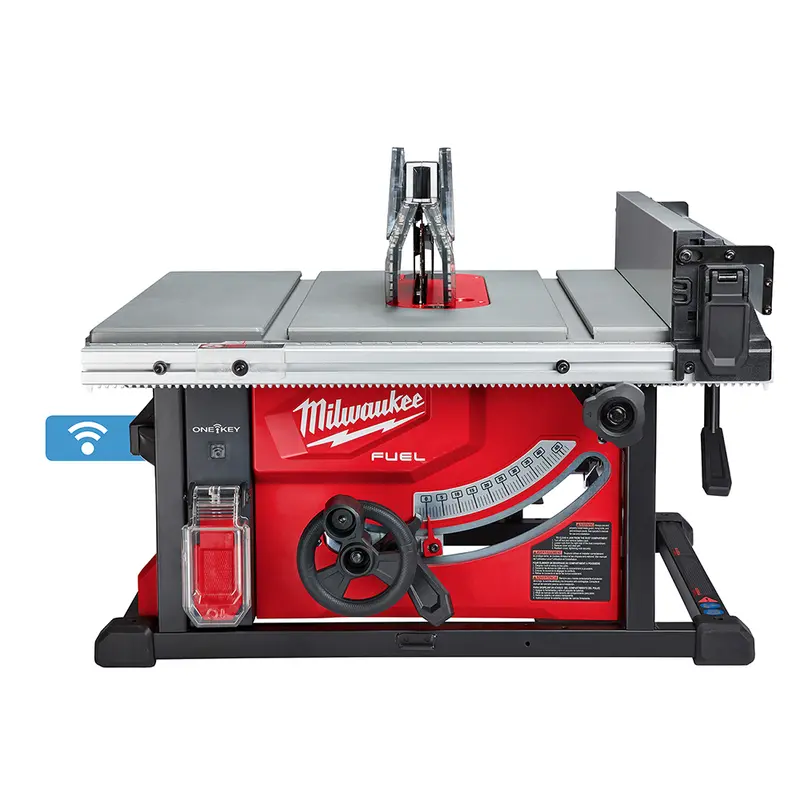

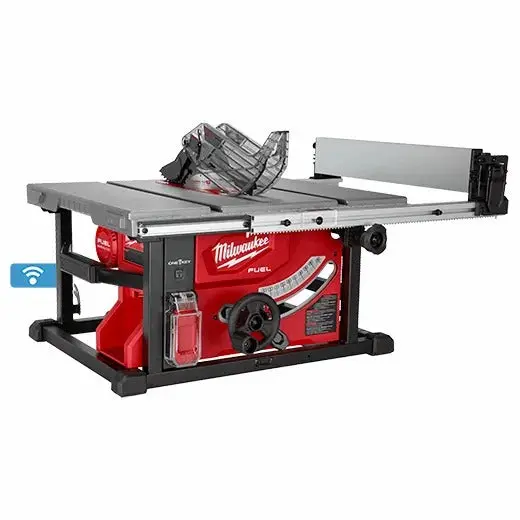

Description
Features
- POWERSTATE™ Brushless motor – purposely built for the M18 FUEL™ 8-1/4 in. table saw to generate the power and performance of a 15 A corded circular saw
- REDLINK Plus™ intelligence – ensures optimal performance and provides overload protection to prevent damage to the tool and battery during heavy applications while still maintaining compatibility across the entire M18™ system
- Compatible with all M18 batteries
- 24-1/2 in. rip capacity to rip 4 x 8 sheets of plywood or OSB
- All metal frame to handle tough jobsite conditions
- On board storage for guard, riving knife, push stick, fence and miter gauge
- Tool free guard and riving knife changes
- Single wrench blade change
- Rack and pinion fence system for square cuts and easy adjustment
Specifications
- Bench or Stationary: Bench
- Blade Speed (rpm): 6300.0
- Blade Diameter (in): 8.25
- Number of Batteries Required: 1
- Number of Batteries Included: 0
- Battery Composition: Lithium-Ion (Li-ion)
- Battery Voltage (V): 18
- Battery Size: Battery Packs
- Arbor Size (in): 0.625
- Maximum Cut Depth @ 45° (in): 1.75
- Maximum Cut Depth @ 90° (in): 2.5
- Maximum Dado Diameter (In): 6.0
- Maximum Dado Width (in): 0.75
- Color / Finish: Red/Black
- Table Height From Floor (In): 20.5
- Table Length (in): 17.75
- Table Width (in): 23.0
- Table Material: Steel
- Charger Included: No
- Energy Star Certified Recharging System: No
- Dust Blower: No
- Dust Port: Yes
- Dust Port Outside Diameter (in): 2.5
- Drive Motor System: Direct Drive
- Fence Included: Yes
- Rip Capacity – Left (in): 12.0
- Rip Capacity – Right (in): 24.5
- Net Tool Weight (lbs): 41.6
- CSA Certified: No
- ETL Listed: No
- UL Listed: Yes
- Package Contents: 2736-20 8-1/4″ Table Saw, Blade, Guard, Riving Knife, Push Stick, Miter Gauge and Wrench
